Flanged Non Slam Nozzle Flow Check Valve Axial Flow

Flanged Non Slam Nozzle Flow Check Valve Axial Flow

Introduction of this Flanged Non Slam Nozzle Flow Check Valve Axial Flow Silencing check valve is suitable for water supply and drainage pipeline, the valve disc adopts the central axis guide at both ends of the inlet and outlet, open and close flexibly, can be installed horizontally or vertically.

Products Detail

Introduction of this Flanged Non Slam Nozzle Flow Check Valve Axial Flow

Silencing check valve is suitable for water supply and drainage pipeline, the valve disc adopts the central axis guide at both ends of the inlet and outlet, open and close flexibly, can be installed horizontally or vertically.Disc spring loaded, its fast closure can effectively eliminate water hammer, good sealing performance, closed without noise.

 Advantages and installation of this Flanged Non Slam Nozzle Flow Check Valve Axial Flow

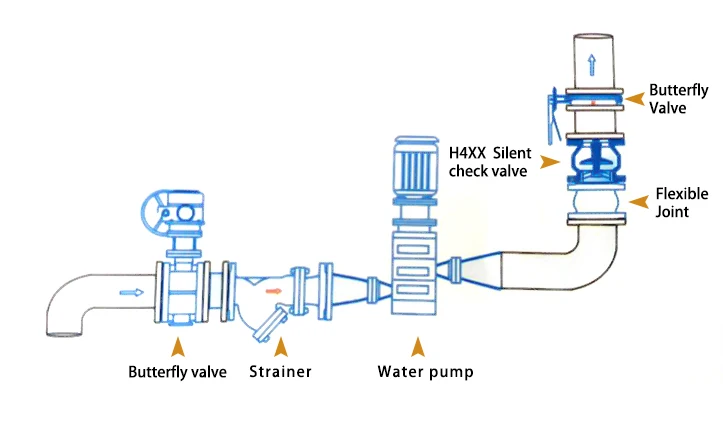

Feature Installation Diagram

1. Small size

2. Light weight

3. Low fluid resistance

4. Fatigue resistance

5. Long life

Flanged Non Slam Nozzle Flow Check Valve Axial Flow

Material and structural dimensions of this Flanged Non Slam Nozzle Flow Check Valve Axial Flow

Flanged Non Slam Nozzle Flow Check Valve Axial Flow Main part material
Type Valve body Sealing ring Spring
H41X-10 Cast steel or stainless steel NBR Stainless Steel Wire
H41-16 Cast steel or stainless steel NBR Stainless Steel Wire

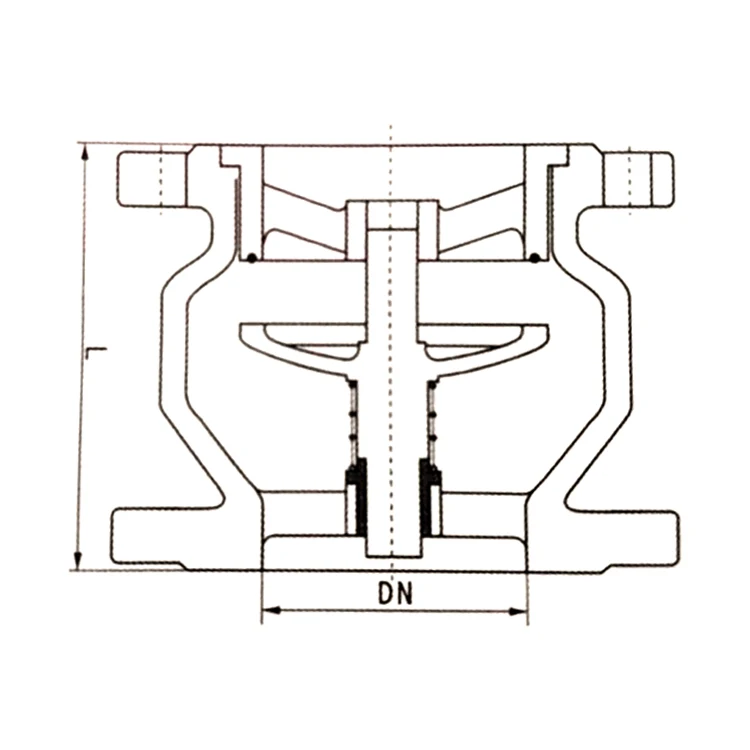

Main external and connecting dimensions
DN 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600
L 110 125 135 155 165 190 210 260 310 320 380 405 430 450 510
